NC7509PT HF Drivers 3 inches
Notes
- 3 INCH WOOFER EDGEWOUND CCA VOICE COIL
- 109 dB/SPL SENSITIVITY
- 220 WATT PROGRAM POWER HANDING
- FEM OPTIMIZED MOTOR ,PHASEPLUG AND DIAPHRAGM
- 500-19000 Hz FREQUENCY RANGE
- TITANIUM DIAPHRAGM AND SUSPENSION
- VOICE COIL COPPER DEMODULATION RING
- 109 dB/SPL SENSITIVITY
- 220 WATT PROGRAM POWER HANDING
- FEM OPTIMIZED MOTOR ,PHASEPLUG AND DIAPHRAGM
- 500-19000 Hz FREQUENCY RANGE
- TITANIUM DIAPHRAGM AND SUSPENSION
- VOICE COIL COPPER DEMODULATION RING

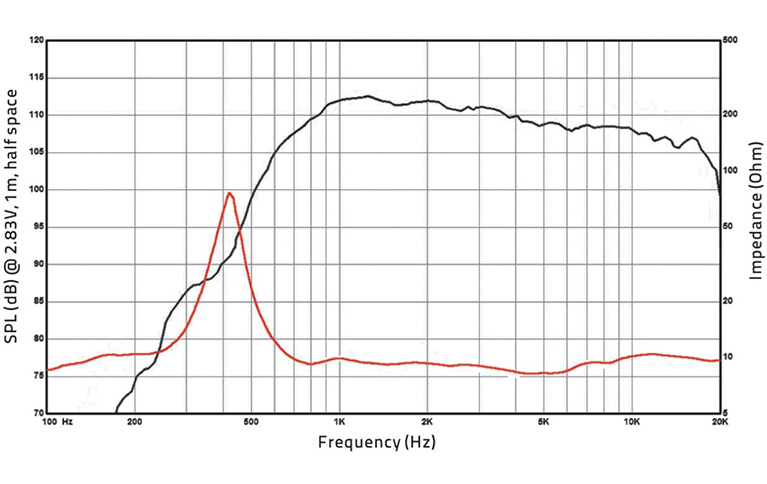

GENERAL SPECIFICATIONS
| Throat diameter | 36(1.4) mm (in.) |
|---|---|
| Nominal diameter | 8 mm (in.) |
| Nominal impedance | 6.8 Ω |
| Minimum impedance | 220 Ω |
| Program power (1) | 110 W |
| AES Power rating(2) | 109 W |
| Sensitivity (3) | 109 dB |
| Frequency range | 500-19000 Hz |
| Voice coil diameter | 75(3) mm (in.) |
| Magnet material | Neodymium |
| Magnet dimensions (ODxIDxh) | 124 mm |
| Coil material | CCAR |
| Former material | Kapton |
| Diaphragm material | Titanium |
| Suspension material | Titanium |
| Voice coil Inductance | 0.10 |
| Flux density | 2.0 T |
| Recommended crossover (4) | 1200 Hz |

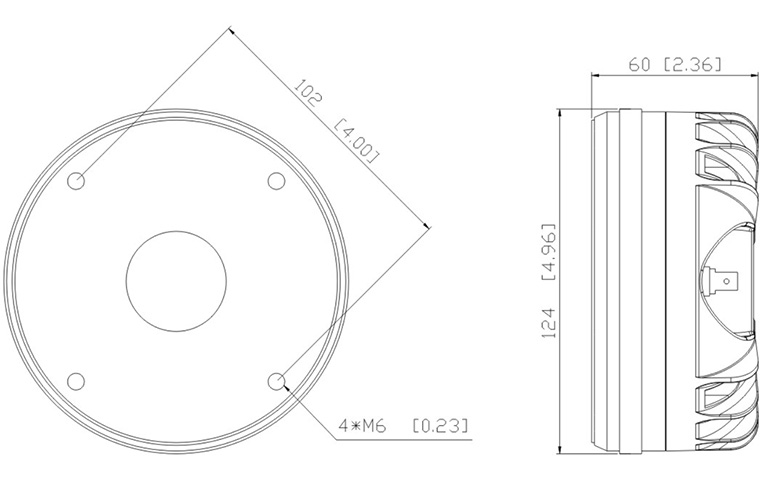

SHIPPING INFORMATION
| Net weight | 2.1 Kg |
|---|---|
| Multipack size (12) (W x D x H) | 400 x 270 x 165 mm |
| Multipack weight | 26.8 (12pcs) Kg |
OTHERS
(1)Program power is defined as 3 dB greater than AES Power.
(2) Tested for two hours using a continuous, band-limited pink noise signal as per AES 2-1984 Rev. 2003. Loudspeaker tested in free air.
(3) From T/S parameters, measured with LMS DA LPM module.
(4) The Xmax is calculated as: (Hvc - Hg)/2+ Hg/4. Hvc is the voice coil height and Hg the gap height.
(5) The Xmech is calculated as: (Hvc - Hg)/2 +(Hg-2). Hvc is the voice coil height and Hg the gap height.
(6) Thiele-Small parameters are measured after preconditioning: a) at 20°C- 22°C, 50% humidity for 2 hours; b) by LMS LSI measurement.
